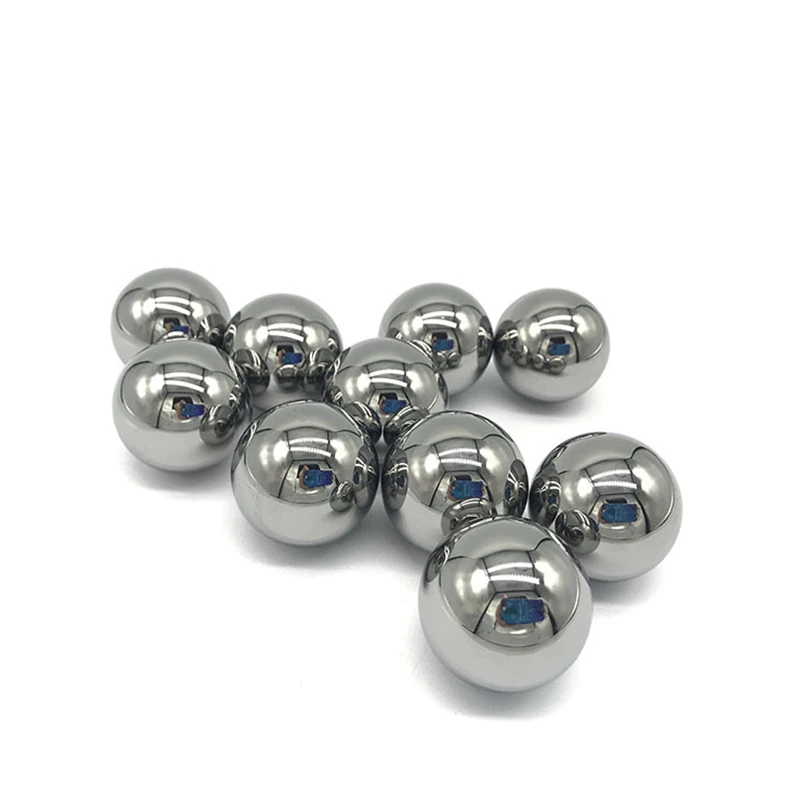

The carbide balls are mainly composed of micron-sized metal carbide powders such as tungsten carbide (WC) and titanium carbide (TiC), along with binders like cobalt (Co), nickel (Ni), or molybdenum (Mo). They are produced through processes such as powder preparation, wet grinding, mixing, molding and pressing, and sintering. Their hardness can reach ≥90.5 HRA, with a density of approximately 14.9 g/cm³. They possess high wear resistance, corrosion resistance and bending resistance.
Classification and Grades

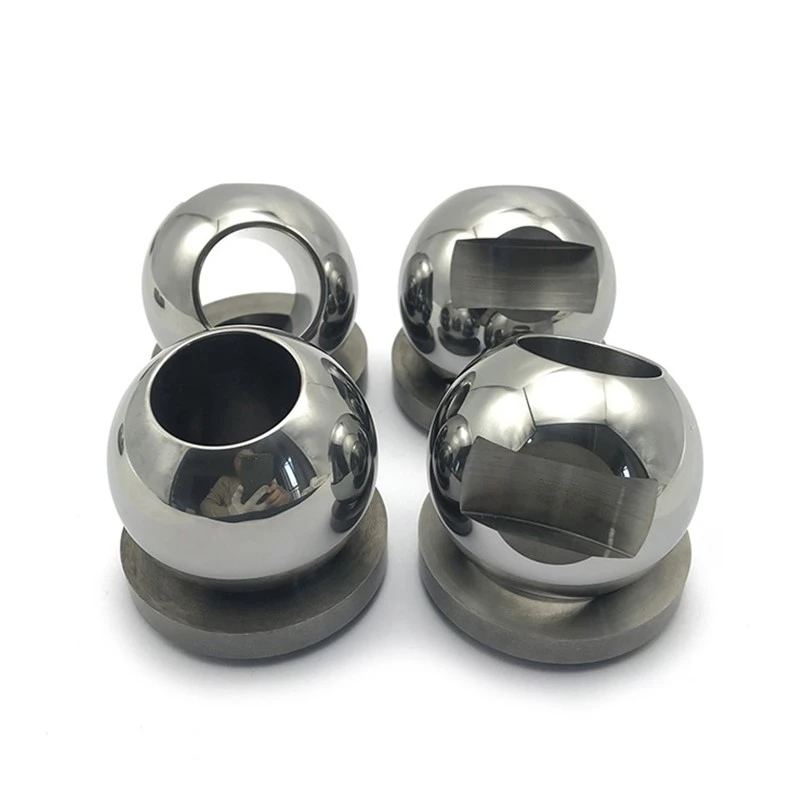

carbide balls are classified by application into types such as blank balls, precision ground balls, bearing balls, valve balls, non-magnetic balls, pen ball bearings, etc., totaling over a dozen varieties. Common grades include YG, YN, YT, and YW series, among which YG6 and YG8 are typical representatives. The production accuracy level can reach G3-G3000, and customized non-standard products are also supported.
Performance Features
- High hardness and wear resistance: the wear resistance is tens to hundreds of times higher than that of traditional steel balls.
- Corrosion resistance and bending resistance: suitable for high-temperature, corrosive environments and mechanical impacts.
- Chemical stability: tungsten carbide does not dissolve in water, hydrochloric acid and sulfuric acid, but can dissolve in the mixture of nitric acid and hydrofluoric acid.
- High-temperature performance: can be used at temperatures above 400°C, with a melting point of approximately 2870°C and a boiling point of approximately 6000°C.
- Special features: non-magnetic carbide balls are suitable for magnetic powder molds. The surface roughness of the pen-shaped balls is low, and the micropores are uniform.
Application fields
carbide balls are widely used in:
• Precision bearings, instruments and meters, mechanical manufacturing
• Oilfield equipment, spraying machines, valve motors
• Aerospace and high-end processing industries
• Ball bearings for writing instruments, mold manufacturing, thermal production wells and sand-producing wells.
Its high strength, wear resistance, corrosion resistance and high-temperature resistance make it a key material for high-end manufacturing and precision processing industries.
SPEC
|
Material |
Solid tungsten carbide |
|
Coating |
Blank or Polished |
|
Chemical Composition |
10% Co & 90% WC |
|
Grain Size |
1.2 μm |
|
Hardness (HRA) |
≥90 |
|
Magnetic Force |
23 (KA/M) |
|
T.R.S |
3200 (N/mm2) |
|
Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
kind of accessories |
|
Density |
14.05 (g/cm3) |

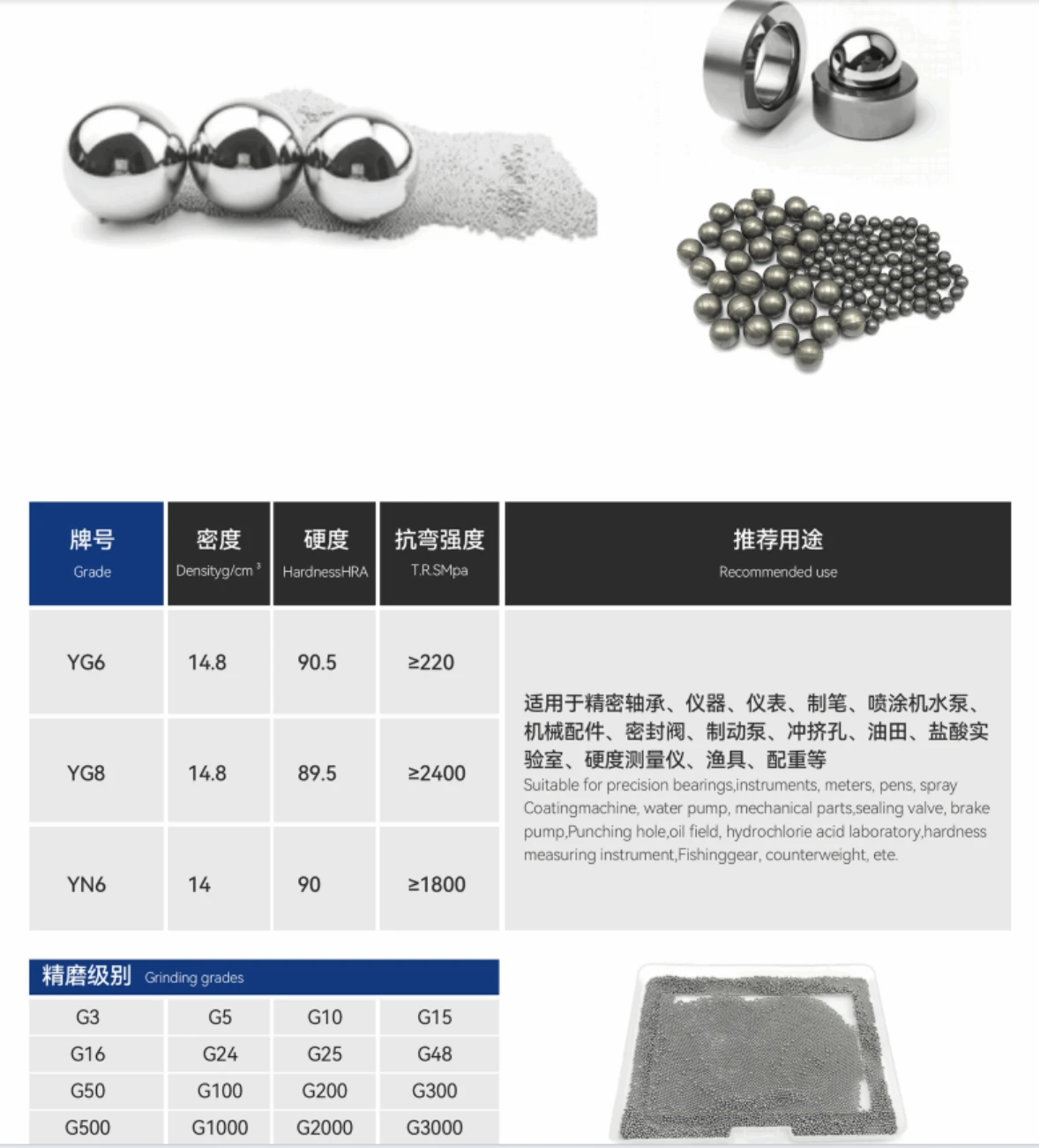

Tungsten Cemented Carbide Grade
Main
Hot Products
Company Information
Kunshan Zhiyi Dingli Cemented Carbide Tool Co., Ltd. locates the famous domestic tool and machinery equipment production base - Suzhou. The factory is mainly working on the production and development of all kinds of carbide tools, like end mill, tap, drill bits, carbide pilots. In China, our goal is to become the central base of manufacture of die-casting rods, carbide boring bar, standard cutters, non standard cutters and hard-machining cutters, establishing a good and healthy company image among coterie.
At present,the company can. In general, our products can be used in manufacture of mould, electronics, car engine and accessories, petroleum machinery, machinofacture, etc. We have stable customers, such as the United States, Russia, Indonesia, South Korea, Japan, Australia and so on.
Testing Machine
Production Flow Chart
Packing & Delivery
Packing
1>Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box,etc.
2>Other packing will be accept according to your needs.
