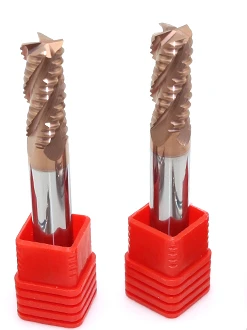

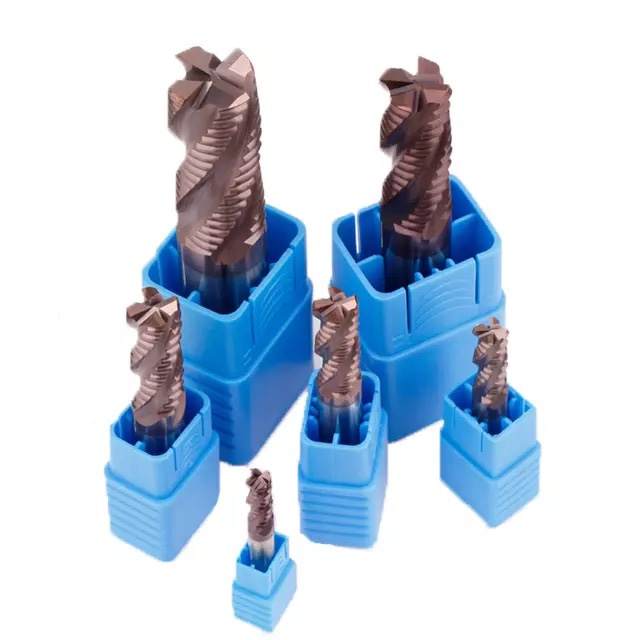

The roughing teeth milling cutter, also known as a rougher or "hog mill," is designed for fast, high-volume material removal before a final finishing pass. It features serrated, wavy cutting edges that break wide chips into smaller, more manageable pieces, drastically reducing cutting pressure and preventing machine vibration.
The thick skin milling cutter, also known as the wave-edge milling cutter, corrugated milling cutter or corn milling cutter, is a type of rotating milling tool mainly used for the rough processing of metal materials. Its cutting part is usually made of high-speed steel and can be classified into TICN coating, TIALN or Nano coating super-hard coating and non-coated types, and is divided into three major types of teeth: coarse teeth, medium teeth and fine teeth. Its cutting efficiency can be 1-2 times higher than that of ordinary milling cutters. The LX series of violent rough milling cutters produced by Changzhou Taobo Precision Tools Co., Ltd. belong to typical products of this category. In addition, brands such as WALTER and YUANCHUANG also produce such tools.
This tool has a 30° helical angle, adopts a full grinding groove structure, with a diameter range of 2-50 mm. The diameters of 2-20 mm are within the straight shank range, and the diameters of 14-50 mm are within the conical shank range. The shank part is made of 45 steel material. It is suitable for planar, shoulder, slot processing and complex 3D shape processing of materials such as stainless steel, aluminum alloy, mold steel, aluminum-copper alloy, etc., and allows for larger cutting volume and feed rate. The LEX series milling cutters produced by WALTER and YUANCHUANG are also such tools.
This tool has a 30° helical angle, adopts a full grinding groove structure, with a diameter range of 2-50 mm. The diameters of 2-20 mm are within the straight shank range, and the diameters of 14-50 mm are within the conical shank range. The shank part is made of 45 steel material. It is suitable for planar, shoulder, slot processing and complex 3D shape processing of materials such as stainless steel, aluminum alloy, mold steel, aluminum-copper alloy, etc., and allows for larger cutting volume and feed rate. After rough processing, a sufficient allowance of 0.2-1.0 mm should be reserved for subsequent fine processing. The lifespan of some models can be increased by more than 50%.
The thick skin milling cutter is suitable for processing materials such as stainless steel, aluminum alloy, mold steel, tool steel, carbon steel, alloy steel, cast iron, and general iron materials. Its typical processing scenarios include slot processing, step face processing, planar processing and rough processing of complex 3D shapes.
Before mounting, the tool handle and the inner hole of the tool holder should be cleaned and dried to prevent insufficient clamping force due to oil film; for large-diameter milling cutters, a tool holder with a beveling notch and side locking method should be selected.
When vibration occurs during processing, the cutting speed and feed speed should be reduced, or the cutting depth should be reduced; if the tool holder port becomes conical, it should be replaced in time.
Modern thick skin milling cutters are often used in combination with high feed milling strategies, using a small cutting depth and extremely high feed rate to achieve high metal removal rate. After rough processing, the surface of the workpiece is rough, and sufficient allowance (usually 0.2-1.0 mm) should be reserved for subsequent fine processing.
SPEC
|
Material |
Solid tungsten carbide |
|
Coating |
Uncoated or TICN, TIALN, AlTiN or Nano coated....... |
|
Chemical Composition |
10% Co & 90% WC |
|
Grain Size |
1.2 μm |
|
Hardness (HRA) |
≥90 |
|
Magnetic Force |
23 (KA/M) |
|
T.R.S |
3200 (N/mm2) |
|
Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
Kind of tool to milling |
|
Density |
14.05 (g/cm3) |
Tungsten Cemented Carbide Grade
