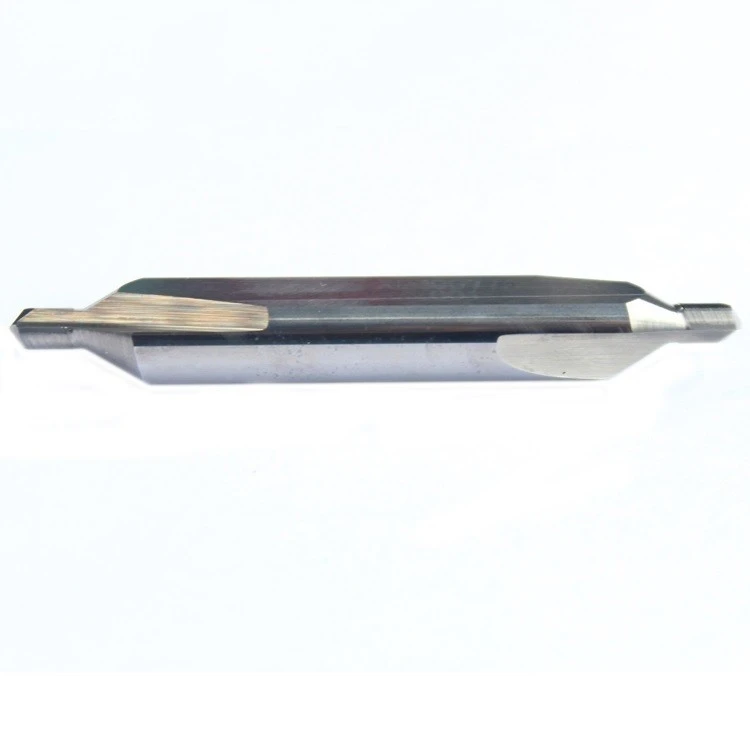

Double-head center drills (also known as combined drills and countersinks) are short, double-ended tools used to create precise conical holes in the ends of workpieces. This process allows the material to be securely held between centers on a lathe or cylindrical grinder, ensuring high-accuracy machining.
These tools are generally classified into different styles based on the type of chamfer required:

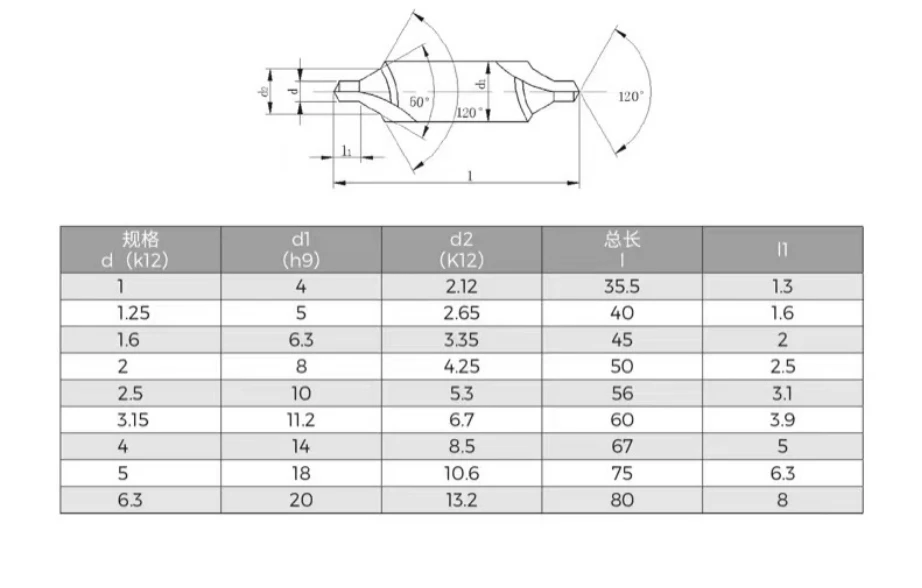

- Type A: Standard design that produces a simple 60° countersink angle.
- Type B: Bell type, which features two chamfer angles (60° and 120°). The secondary 120° chamfer protects the delicate edge of the primary center hole from chipping or wear during heavy machining.
They are typically composed of either High-Speed Steel (HSS) for standard applications or solid carbide for harder materials like stainless steel and heat-resistant alloys.
SPEC
|
Material |
Solid tungsten carbide or HSS |
|
Coating |
Uncoated |
|
Chemical Composition |
10% Co & 90% WC or M2, M35 |
|
Carbide Grain Size |
1.2 μm |
|
Carbide Hardness (HRA) |
≥70 |
|
Carbide Magnetic Force |
23 (KA/M) |
|
Carbide T.R.S |
3200 (N/mm2) |
|
Carbide Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
kind of tool to drill the hole |
|
Carbide Density |
14.05 (g/cm3) |
Tungsten Cemented Carbide Grade
Main
Hot Products
Company Information
Kunshan Zhiyi Dingli Cemented Carbide Tool Co., Ltd. is a specialist manufacturer of double-head center drills at our Suzhou production base. Our Type A and Type B center drills serve lathe and cylindrical grinder setups across the precision turning industry, supplying bearing manufacturers, automotive shaft producers, and general machine shops worldwide.
Our center drills are specified by precision turning workshops in Germany, Italy, Japan, and China. We maintain close relationships with machine tool builders and provide custom center drill solutions for specialized turning and grinding applications.
Production Flow Chart
Packing & Delivery
Packing
1>Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box, etc.
2>Other packing will be accept according to your needs.
FAQ
Q1: What is Type A vs Type B?
A1: Type A has a single 60 degree countersink. Type B adds a 120 degree protective chamfer to prevent edge damage during heavy machining.
Q2: What materials are available?
A2: HSS for general work and solid carbide for precision in hardened materials. Cobalt HSS for stainless steel.
Q3: How do I select the correct size?
A3: Body diameter about 1/8 of workpiece diameter. For small work under 6mm, use matching pilot diameter.
Q4: Can center drills be used on CNC lathes?
A4: Yes, we recommend solid carbide for CNC use due to higher rigidity and longer life at higher speeds.
Q5: Do you make special angle center drills?
A5: Yes, 45 and 90 degree available to order. Minimum quantity applies for custom angles.
