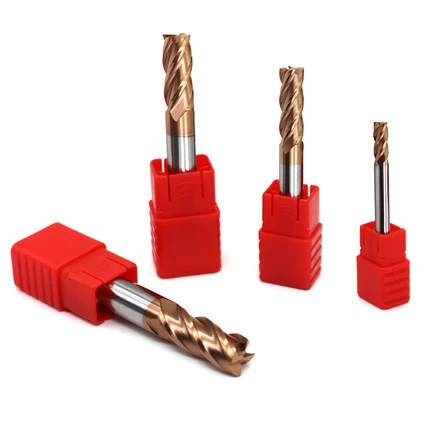

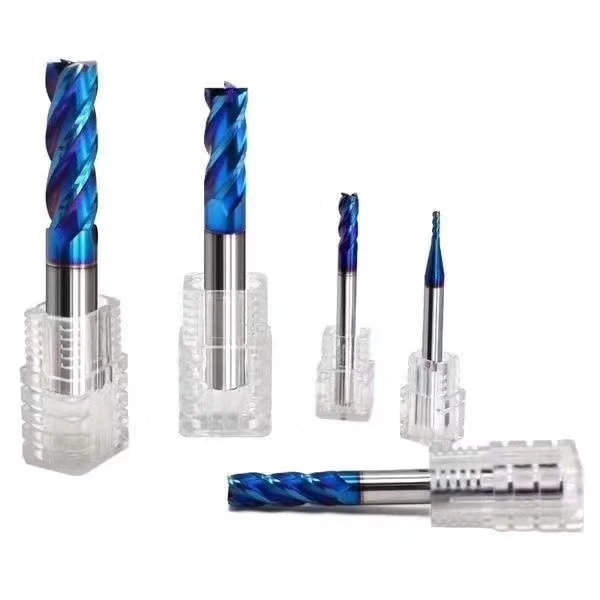

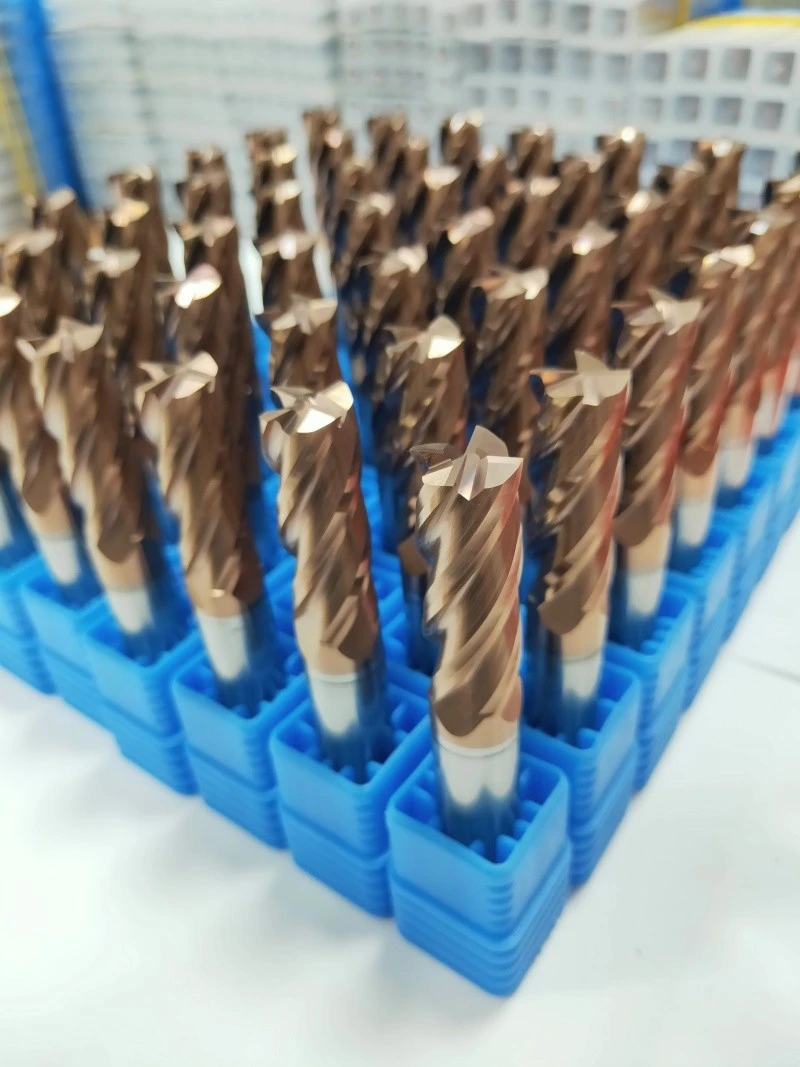

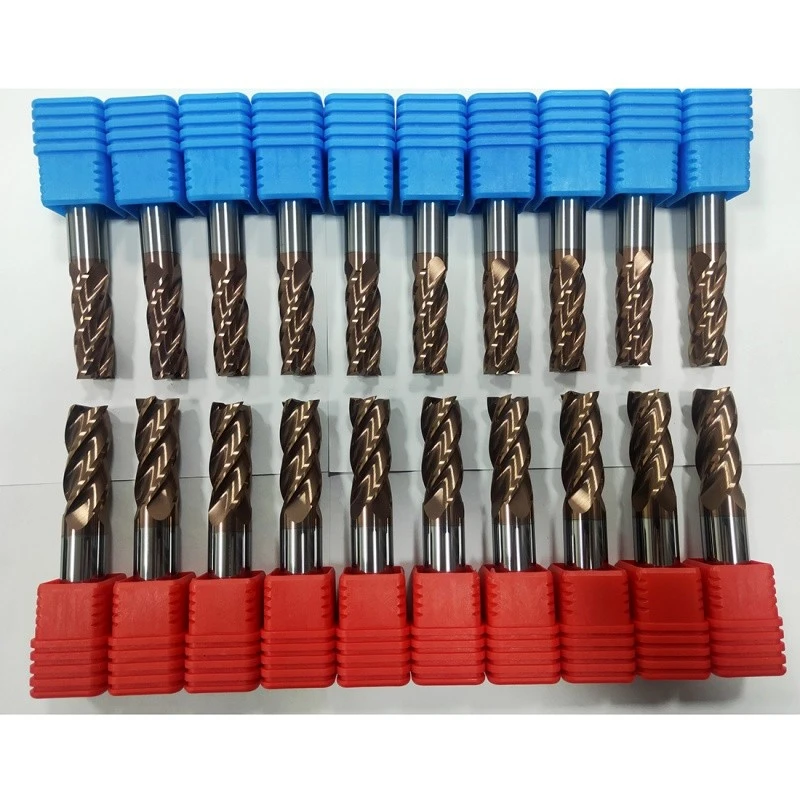

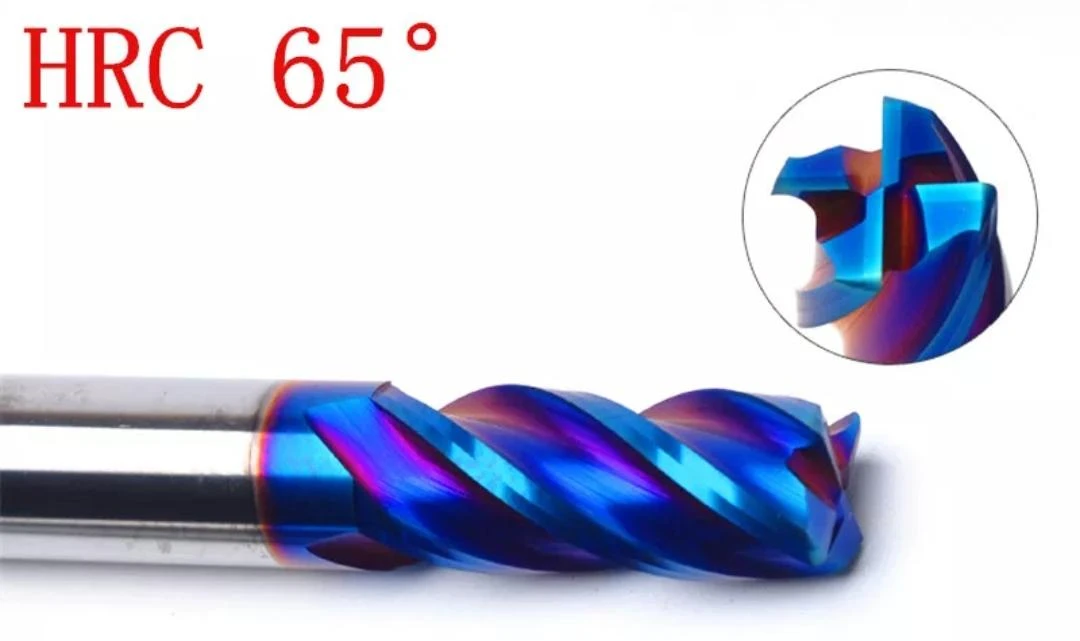

4F flat head carbide end mill is a cutting tool with four cutting edges, which can effectively remove chips, shorten cycle time and increase productivity. Are you looking for a reliable and versatile end mill? The 4F end mill is rapidly becoming the preferred choice for many industry professionals. This type of end mill has a special chip thinning function, which provides efficient cutting and improved surface finish, and due to its design, it is almost suitable for any processing application.
Its advantages mainly include:
1. A thicker core provides a 28% increase in torsional stiffness, reducing the deflection of steel and titanium alloys.
2. The smaller valleys limit the chip removal efficiency, so a lower feed rate is required in the roughing process.
3. Example: A 11mm 4-edge carbide end mill for steel processing maintains a radial run out of ±0.005mm during high-load milling.
4. Excellent surface finish (Ra 0.4–1.2μm) through multi-edge meshing and reduced vibration.
5. Recommended for fine milling and tight tolerance characteristics (e.g., medical implants).
SPEC
|
Material |
Solid tungsten carbide |
|
Coating |
Uncoated or AlTiN or Nano coated....... |
|
Chemical Composition |
10% Co & 90% WC |
|
Grain Size |
1.2 μm |
|
Hardness (HRA) |
≥90 |
|
Magnetic Force |
23 (KA/M) |
|
T.R.S |
3200 (N/mm2) |
|
Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
Kind of tool to milling |
|
Density |
14.05 (g/cm3) |

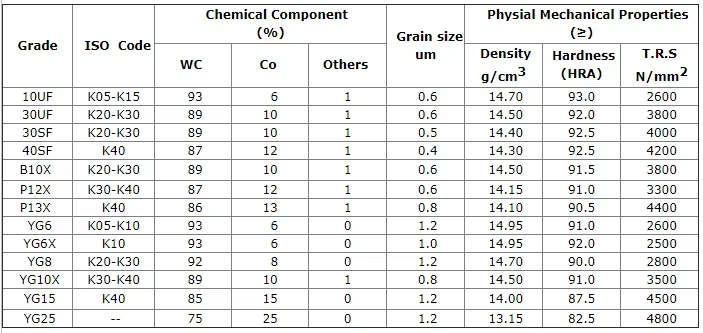

Tungsten Cemented Carbide Grade
