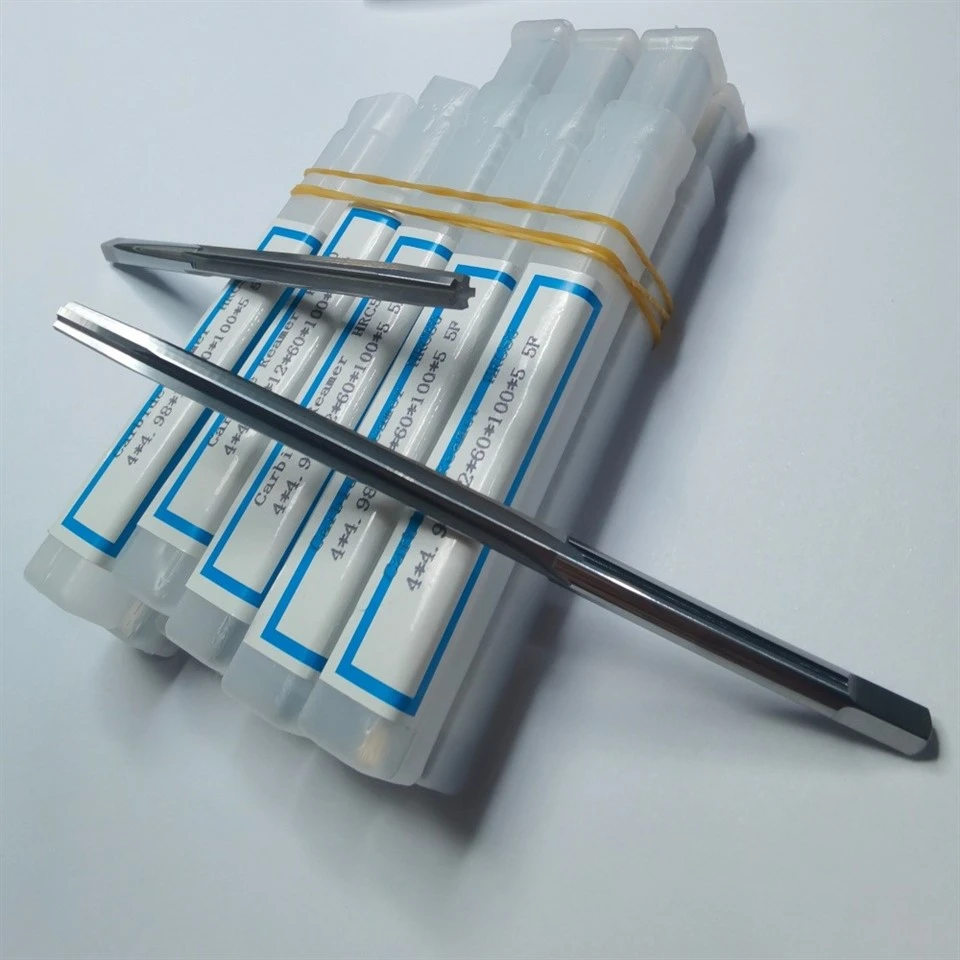

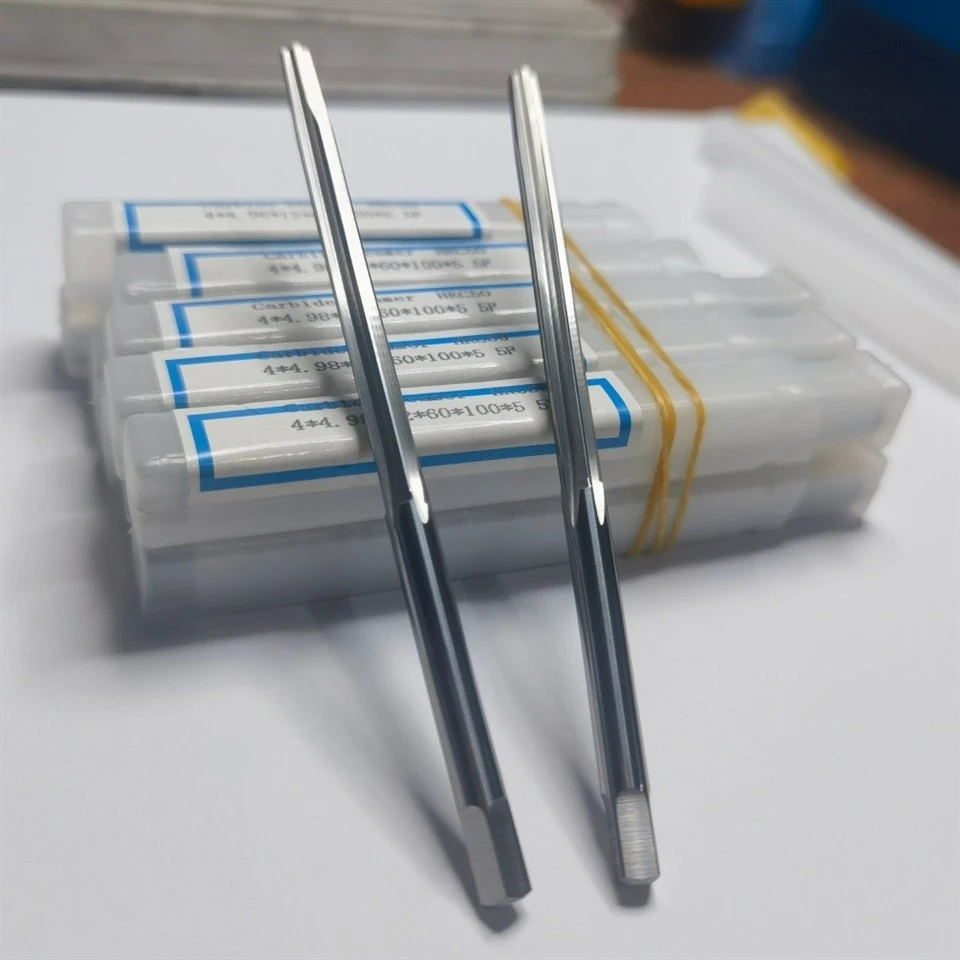

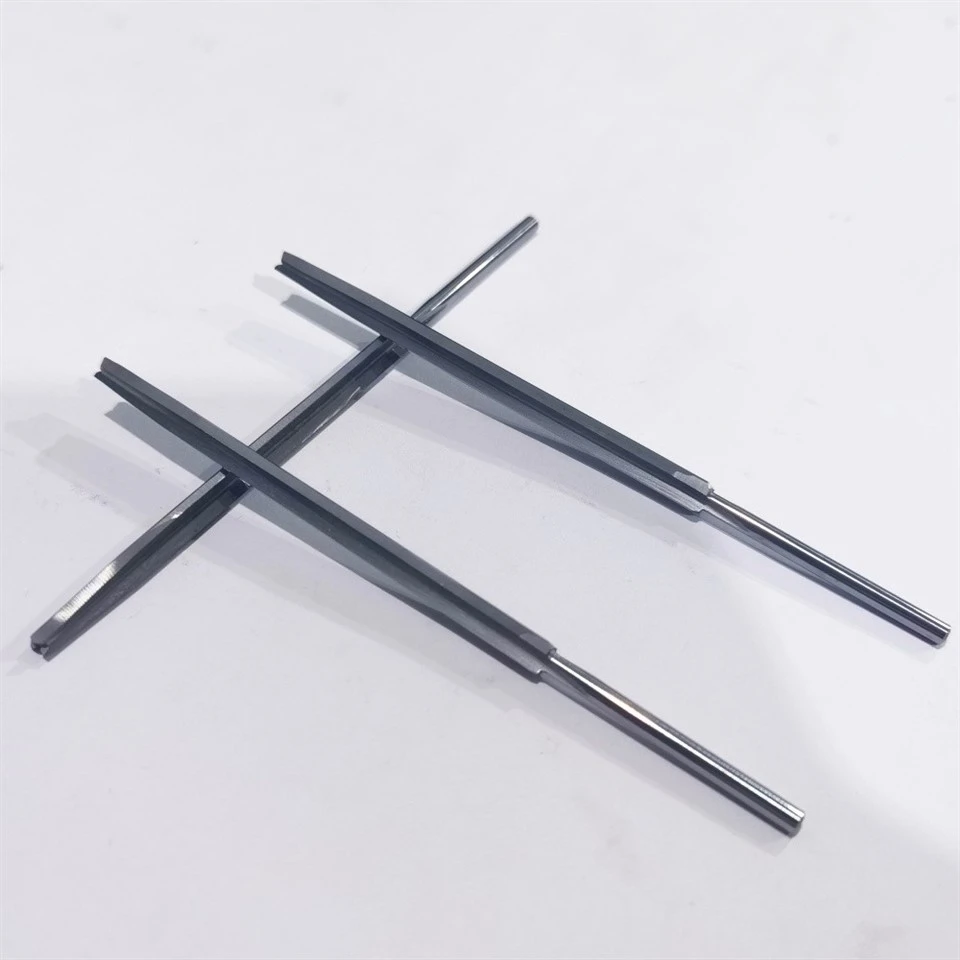

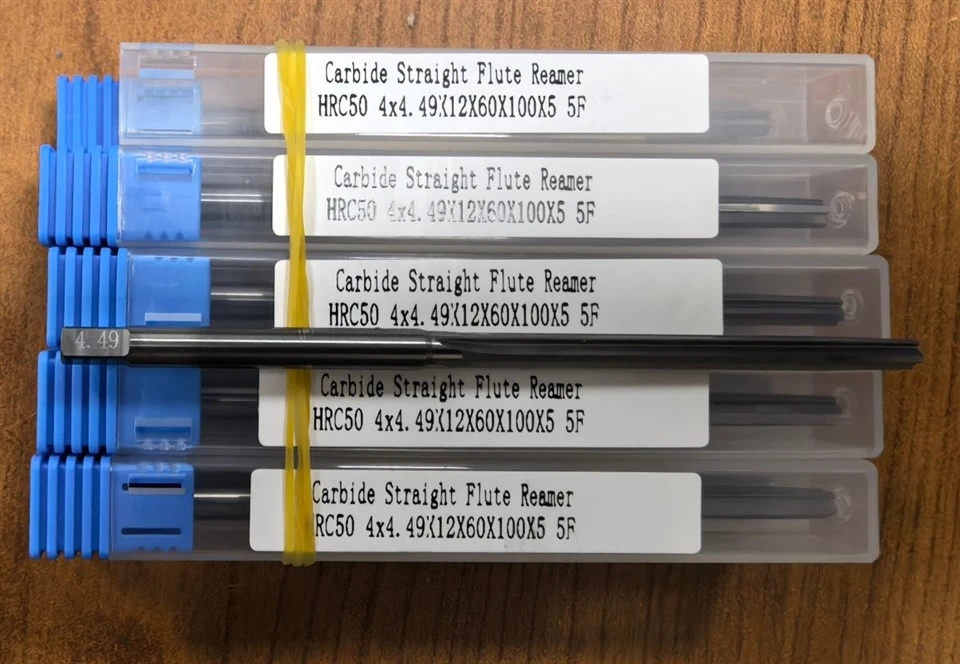

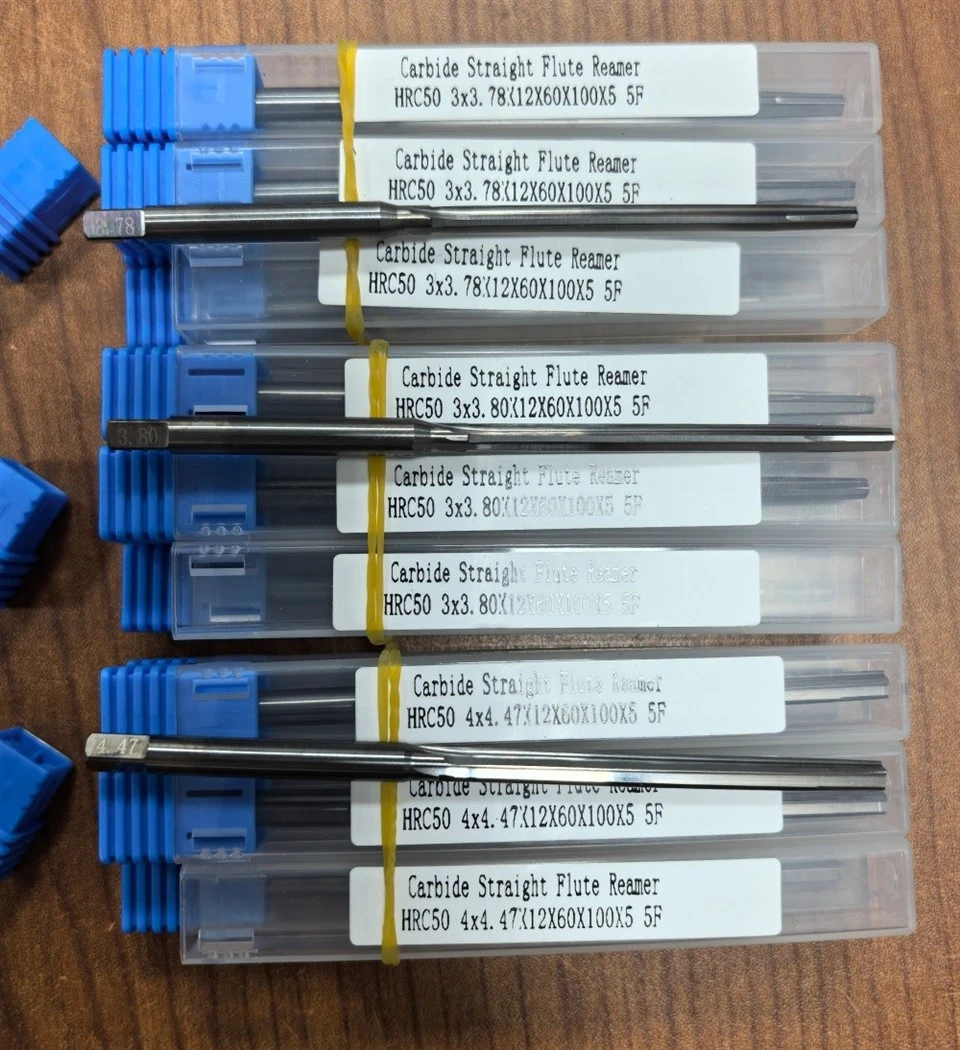

Carbide straight flute reamer for valve seat guide machines is of high precision and has a high degree of concentricity, featuring cemented carbide material.
Straight flute: easy for manufacturing, inspection and grinding. This tool is mainly used for valve seat guide machines, drill the engine holes and remove the burrs from the holes.
Insert Standard 3/8 (9.52mm) Shank diameter UNI-PILOT in the cylinder head valve guide.Place checking gauge along pilot section that is exposed above cylinder head surface.If pilot top is within Min & Max range of the gauge, then you may proceed with machining seat.If pilot top is above Max range on gauge a smaller diameter pilot must be used.If pilot top is below Min range mark on gauge a larger pilot must be used.Checking Working Range of UNI-PILOT. Then use the carbide reamer to remove the burrs from the holes.
SPEC
|
Material |
Solid tungsten carbide |
|
Coating |
Uncoated |
|
Chemical Composition |
10% Co & 90% WC |
|
Grain Size |
1.2 μm |
|
Hardness (HRA) |
≥90 |
|
Magnetic Force |
23 (KA/M) |
|
T.R.S |
3200 (N/mm2) |
|
Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
Kind of pilots tool (core shaft) for the seat and guide machines |
|
Density |
14.05 (g/cm3) |
Tungsten Cemented Carbide Grade
Main
Hot Products
Company Information
Kunshan Zhiyi Dingli Cemented Carbide Tool Co., Ltd. is a professional manufacturer of carbide straight flute reamers for valve seat guide machines. Our reamers feature high precision and high concentricity, manufactured from premium cemented carbide material. The straight flute design offers easy manufacturing, inspection, and grinding advantages. Engineered for accuracy and durability, our reamers deliver clean, consistent bores and long service life in valve seat guide machining applications.
Our factory produces carbide straight flute reamers in diameters from 3 mm to 30 mm with precision flute grinding and finish grinding on advanced CNC tool grinders. We achieve concentricity within 0.003 mm and cutting edge quality that meets international tool standards. Monthly capacity exceeds 5,000 pieces, serving valve seat guide machine manufacturers and engine repair workshops worldwide.
Testing Machine
Production Flow Chart
Packing & Delivery
Packing
1>Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box, etc.
2>Other packing will be accept according to your needs.
FAQ
Q1: What diameters are available?
A1: We produce reamers in diameters from 3 mm to 30 mm.
Q2: What is the concentricity tolerance?
A2: Our reamers achieve concentricity within 0.003 mm.
Q3: Do you offer custom reamers?
A3: Yes, custom diameters, lengths, and flute designs can be manufactured from drawings or samples within 15-20 working days.
About Color Aberration
Product pictures are all physical photography, due to photo-taking technology, light, display parameters, etc., there may be differences between the received physical objects and photos, please refer to the physical.
Cargo Receipt
All our products go through strict inspection and count before shipment. Please check the goods in person when they receive them.
Please refuse to sign and contact us if you find that the CTN number and model is wrong or the product is damaged in transit.
