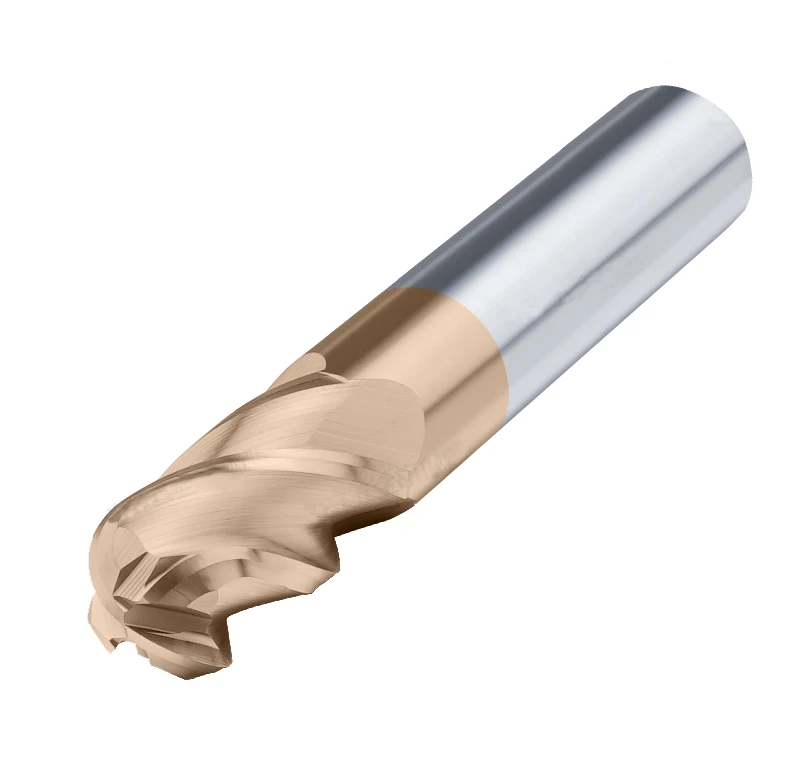

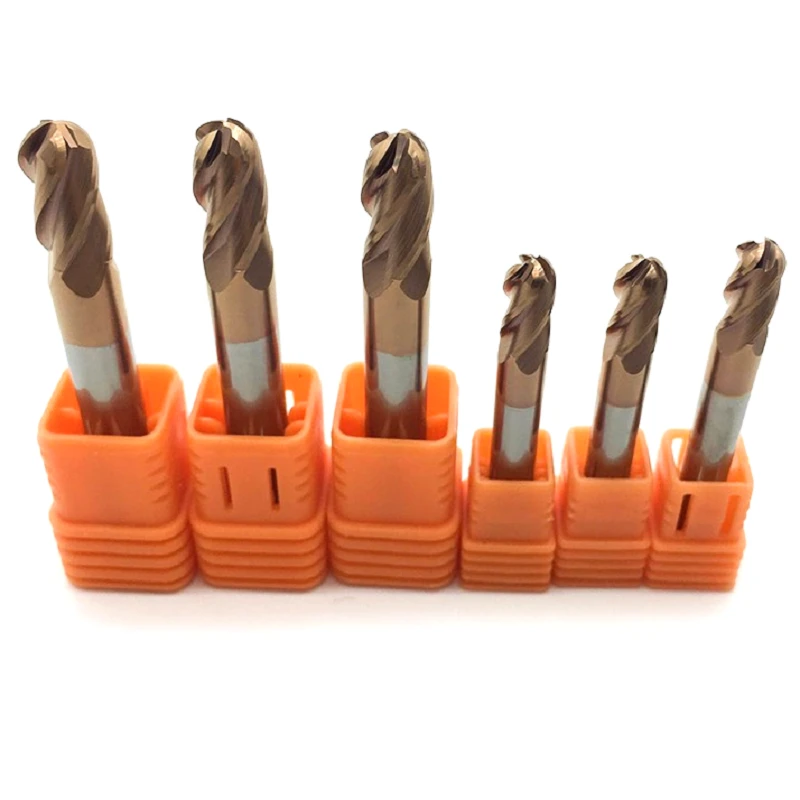

The 4F Ball Nose End Mill / Milling Cutter is a precision CNC tool with 4 cutting edges (4F) and a hemispherical end. It is mainly used for the precise processing of 3D curved surface molds, profiling milling, and groove cutting.
Core technical specifications and features
1. Material: Usually made of high-hardness solid carbide (tungsten steel), and some budget models use high-speed steel with cobalt (HSS-Co).
2. Advantages in number of flutes (4 Flutes): Compared to 2-flute (2F) ball nose cutters, 4-flute tools offer greater rigidity and metal removal rate, allowing for twice the feed rate, and produce a smoother surface finish, making them ideal for finishing. Due to the relatively small chip removal space, it is generally not recommended for rough machining or aluminum processing that is prone to sticking to the tool.
3. Coating selection: Common industrial coatings available on the market include TiSiN (titanium silicon nitride), AlTiN (aluminum titanium nitride), and TiCN, etc. These coatings enable the tool to remain sharp under high-temperature and high-hardness cutting conditions, extending its service life by several times.
When making a purchase, please pay special attention to the following five key parameters:
1. Tool tip radius (R angle): The ball head radius is usually half of the cutting edge diameter (for example, a ball head tool with a 4mm cutting edge has a ball head radius of 2mm).
2. Cutting edge diameter and handle diameter (D1 & D2): Confirm the diameter of the cutting part and the diameter of the clamping handle (equal or unequal diameter handle).
3. Effective cutting length and total length (LOC & OAL): Based on the depth of the cutting for the workpiece, choose standard cutting length, long cutting edge or long-necked style to avoid interference. Workpiece hardness compatibility (HRC): Merchants usually indicate the processing hardness suitable for the tool (such as HRC55 or HRC58-60). Avoid using low-hardness tools to cut high-hardness materials.
4. Cooling method: When processing high-hardness materials, it is recommended to combine air cooling, oil mist or water insoluble cutting fluid to achieve the best surface finish and tool life.
SPEC
|
Material |
Solid tungsten carbide |
|
Coating |
Uncoated or AlTiN or Nano coated....... |
|
Chemical Composition |
10% Co & 90% WC |
|
Grain Size |
1.2 μm |
|
Hardness (HRA) |
≥90 |
|
Magnetic Force |
23 (KA/M) |
|
T.R.S |
3200 (N/mm2) |
|
Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
Kind of tool to milling |
|
Density |
14.05 (g/cm3) |
Tungsten Cemented Carbide Grade
Main
Hot Products
Company Information
Kunshan Zhiyi Dingli Cemented Carbide Tool Co., Ltd. locates the famous domestic tool and machinery equipment production base - Suzhou. The factory is mainly working on the production and development of all kinds of carbide tools, like end mill, tap, drill bits, carbide pilots. In China, our goal is to become the central base of manufacture of die-casting rods, carbide boring bar, standard cutters, non standard cutters and hard-machining cutters, establishing a good and healthy company image among coterie.
At present, the company can. In general, our products can be used in manufacture of mould, electronics, car engine and accessories, petroleum machinery, machinofacture, etc. We have stable customers, such as the United States, Russia, Indonesia, South Korea, Japan, Australia and so on.
Testing Machine
Production Flow Chart
Packing & Delivery
Packing
1>Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box, etc.
2>Other packing will be accept according to your needs.
FAQ
Q1: How long is your delivery period?
A1: It depends on specific conditions. However, it could be 10 to 15 days on average.
Q2: Do you offer samples?
A2: Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy.
Q3: How do you pack the products?
A3: In general, we use wood, plastic or carton boxes. We also put some soft materials inside to prevent possible damage on products.
Q4: How much advance payment do I need to make?
A4: If the products you buy are in stock, you need to make full payment; if the products are out of stock, you need to make about 50 percent of full payment and then we will start the production process. However, you still need to pay the rest of charges before we deliver the products.
Q5: What kinds of payment do you accept?
A5: In addition to the patterns of payment shown above, you can discuss with us about in which way you would like to pay.
About Color Aberration
Product pictures are all physical photography, due to photo-taking technology, light, display parameters, etc., there may be differences between the received physical objects and photos, please refer to the physical.
Cargo Receipt
All our products go through strict inspection and count before shipment. Please check the goods in person when they receive them.
Please refuse to sign and contact us if you find that the CTN number and model is wrong or the product is damaged in transit.
Hot Tags: 4f ball nose milling cutter, China 4f ball nose milling cutter manufacturers, suppliers, factory
