I. Specifications of Double-Edge Milling Tools
Double-edge milling tools are like the Swiss Army knives of the engraving industry. Their specifications are usually expressed as diameter × blade length. Common specifications range from 1mm mini models to 20mm industrial models. Among them, the 4x6 model (diameter 4mm / blade length 6mm) is a versatile choice:
- Fine work: 1-3mm specifications are suitable for circuit board engraving
- Regular processing: 4-8mm can meet most wood and metal processing needs
- Heavy-duty cutting: Above 10mm is used for large material removal.
II. The Golden Balance of 4x6 Model
Why is the 4x6 specification so popular? It can be analyzed from three aspects:
- Cutting efficiency: The 6mm blade length ensures sufficient chip removal space
- Strength guarantee: The 4mm diameter provides excellent resistance to bending
- Versatile application: Compatible with various materials such as plastic, aluminum, and mild steel.
III. Buying Guide for Avoiding Pitfalls
When choosing, pay attention to these details to avoid unnecessary detours:
- Coating selection: No coating is suitable for aluminum materials, while titanium coating has a wider applicability
- Screw angle: 30° is suitable for precision processing, while 45° focuses on rapid cutting
- Handle diameter matching: Commonly available in three caliper specifications: 4mm/6mm/8mm.
SPEC
|
Material |
Solid tungsten carbide |
|
Coating |
Uncoated or coated |
|
Chemical Composition |
10% Co & 90% WC |
|
Grain Size |
1.2 μm |
|
Hardness (HRA) |
≥90 |
|
Magnetic Force |
23 (KA/M) |
|
T.R.S |
3200 (N/mm2) |
|
Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
Kind of tool to milling |
|
Density |
14.05 (g/cm3) |
Tungsten Cemented Carbide Grade
Main
Hot Products
Company Information
Kunshan Zhiyi Dingli Cemented Carbide Tool Co., Ltd. produces double-flute flat end mills at our Suzhou manufacturing facility, designed for the engraving and light machining industry. Our 2-flute end mills range from 1mm to 20mm diameter for circuit board manufacturers, acrylic fabricators, and general CNC engraving workshops.
Our 2-flute end mills are exported to electronics manufacturers in South Korea, engraving shops in the United States, and furniture factories in Europe. We offer free sample testing for new customers to verify tool performance before bulk ordering.
Production Flow Chart
Packing & Delivery
Packing
1>Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box, etc.
2>Other packing will be accept according to your needs.
FAQ
Q1: What is the most popular specification for engraving?
A1: The 4mm diameter by 6mm flute length is most popular, balancing rigidity and clearance for wood, aluminum, and plastic.
Q2: Can these cut hardened steel?
A2: Up to HRC 45. For above HRC 45, our micro-grain carbide with AlTiN coating handles up to HRC 58.
Q3: What shank diameters do you offer?
A3: 3.175mm, 4mm, 6mm, and 8mm. Custom shank diameters available to match your collet system.
Q4: Do you have protective chamfer options?
A4: Yes, corner radius options prevent chipping during interrupted cuts. Specify CR when ordering.

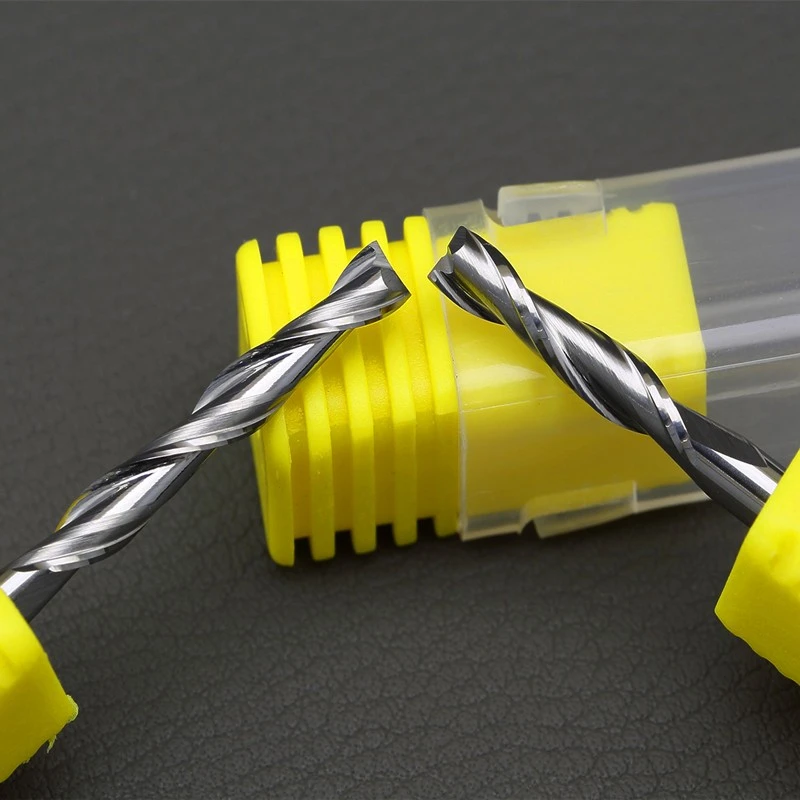

Q5: How do you package small cutters?
A5: Individually in plastic tubes with specification labels and batch numbers for quality traceability.
About Color Aberration
Product pictures are all physical photography, due to photo-taking technology, light, display parameters, etc., there may be differences between the received physical objects and photos, please refer to the physical.
Cargo Receipt
All our products go through strict inspection and count before shipment. Please check the goods in person when they receive them.
Please refuse to sign and contact us if you find that the CTN number and model is wrong or the product is damaged in transit.
