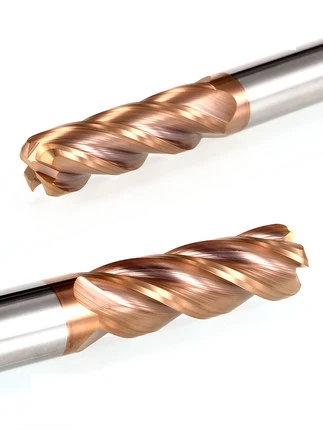

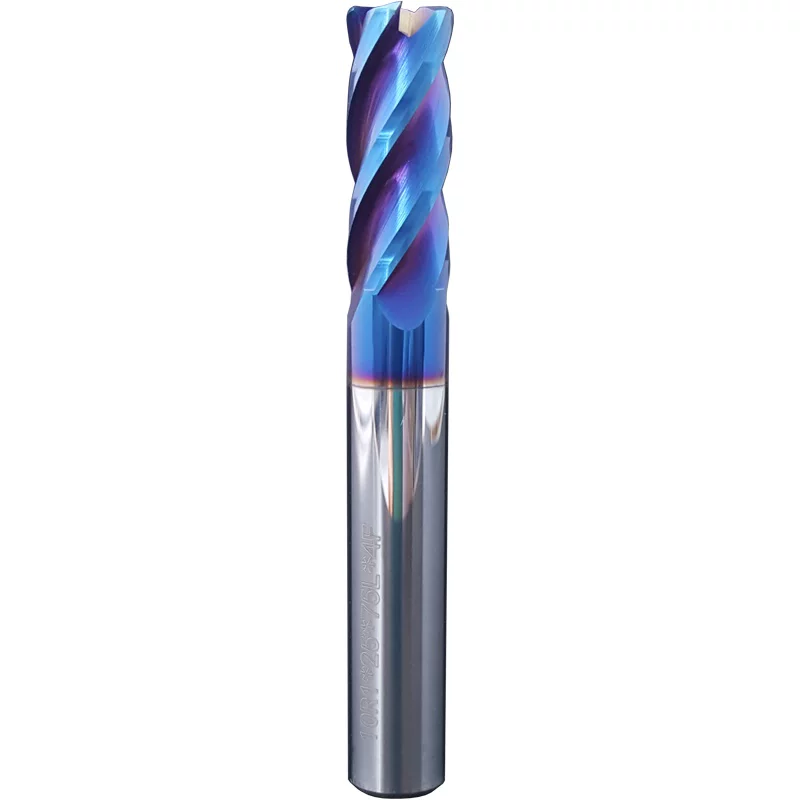

The Radius 4F end mill with a Corner Radius (often referred to as an "R" or "CR"). The 4 flutes allow for high feed rates and fine finishes in harder metals, while the radiused corners drastically reduce chipping and extend tool life compared to sharp, square corners.
Here are the key details and applications for these end mills:
1. Corner Radius (R): The rounded edge distributes cutting forces over a larger area, which prevents stress concentration and tool breakage, making them ideal for high-speed machining and mold making.
2. 4-Flute Design (4F): Best suited for peripheral milling, profiling, and finishing in materials like alloy steels, stainless steel, and cast iron.
3. Best Uses: Recommended for 3D contouring, pocketing, and finishing applications where sharp square ends wear out too quickly.
SPEC
|
Material |
Solid tungsten carbide |
|
Coating |
Uncoated or AlTiN or Nano coated....... |
|
Chemical Composition |
10% Co & 90% WC |
|
Grain Size |
1.2 μm |
|
Hardness (HRA) |
≥90 |
|
Magnetic Force |
23 (KA/M) |
|
T.R.S |
3200 (N/mm2) |
|
Magnetic Saturation |
10.3 (Ms) |
|
Purpose |
Kind of tool to milling |
|
Density |
14.05 (g/cm3) |
Tungsten Cemented Carbide Grade
