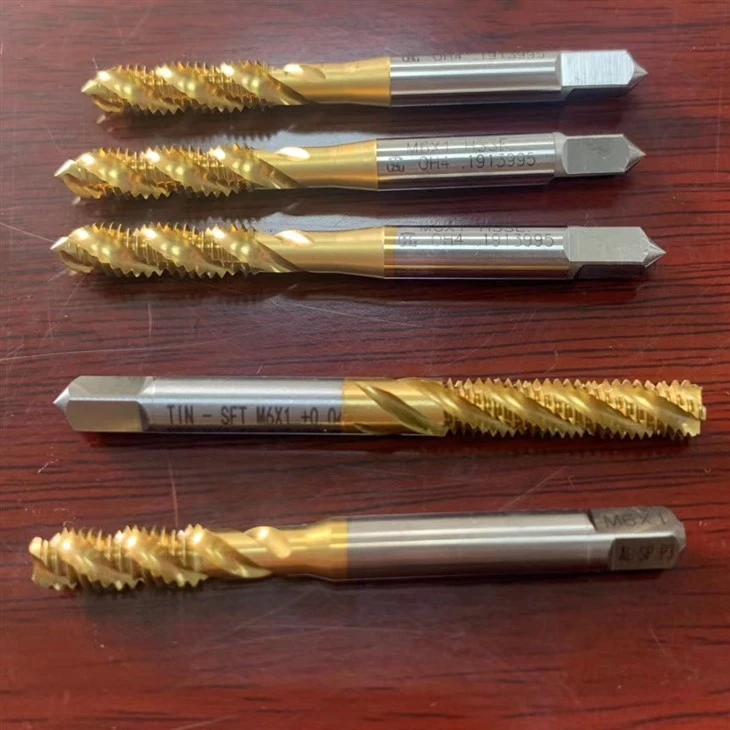

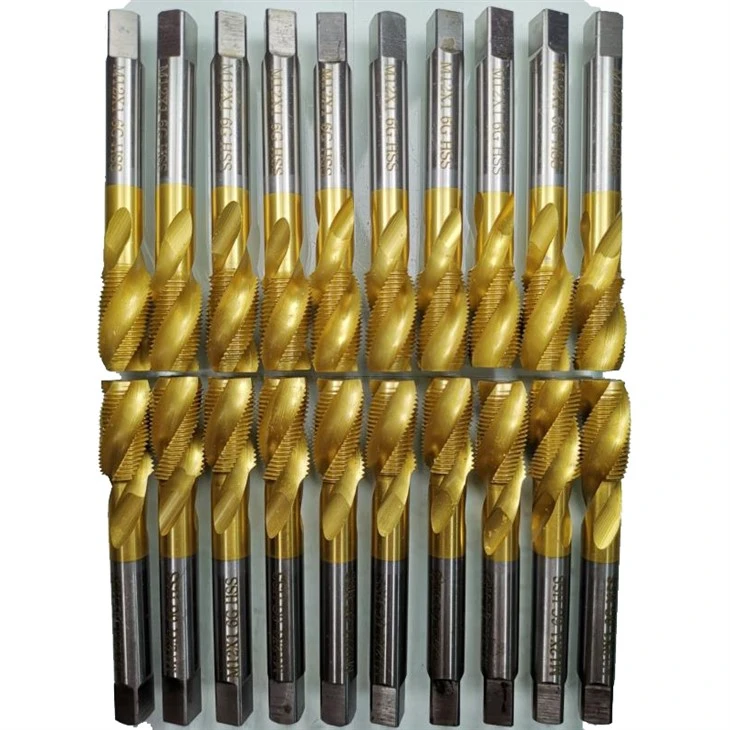

Spiral flute taps feature a helical flute design that pulls cutting chips up and out of the hole, away from the cutting zone. They are the ideal choice for threading blind holes-where the hole does not pass all the way through the material-to prevent chips from packing and breaking the tap.
When to Use Spiral Flute Taps
Blind Holes:
The spiral action acts like an auger, effectively lifting chips out of the closed hole.
Soft & Ductile Materials:
They perform exceptionally well in materials like aluminum, copper, and soft brass, which tend to produce long, stringy chips.
Interrupted Cuts:
If your workpiece has keyways or cross-holes, the spiral design bridges these gaps smoothly without catching.
Key Variations
Helix Angles:
Slow spiral angles (18° - 30°) work best for harder steels, while faster spirals (45° - 52°) are highly effective for pulling stringy chips out of soft aluminum.
Material & Coatings:
Most are made from High-Speed Steel (HSS). You can find coated options, such as Titanium Nitride (TiN) or Steam Oxide, which reduce friction and improve tool life in demanding applications.
Taper, Plug, or Bottoming:
Taps come with different levels of chamfer. A bottoming tap is frequently paired with a spiral flute to cut threads to the very bottom of a blind hole, as it has almost no taper.
SPEC
|
Material |
HSS or HSS-Co |
|
Coating |
Uncoated or TiN or TiCN coated |
|
Chemical Composition |
Haven't Co or 5% Co |
|
Grain Size |
4 μm |
|
Hardness (HRA) |
≥60 |
|
Magnetic Force |
13 (KA/M) |
|
T.R.S |
1200 (N/mm2) |
|
Magnetic Saturation |
5 (Ms) |
|
Purpose |
Kind of tool to process thread |
|
Density |
8 (g/cm3) |
Tungsten Cemented Carbide Grade
