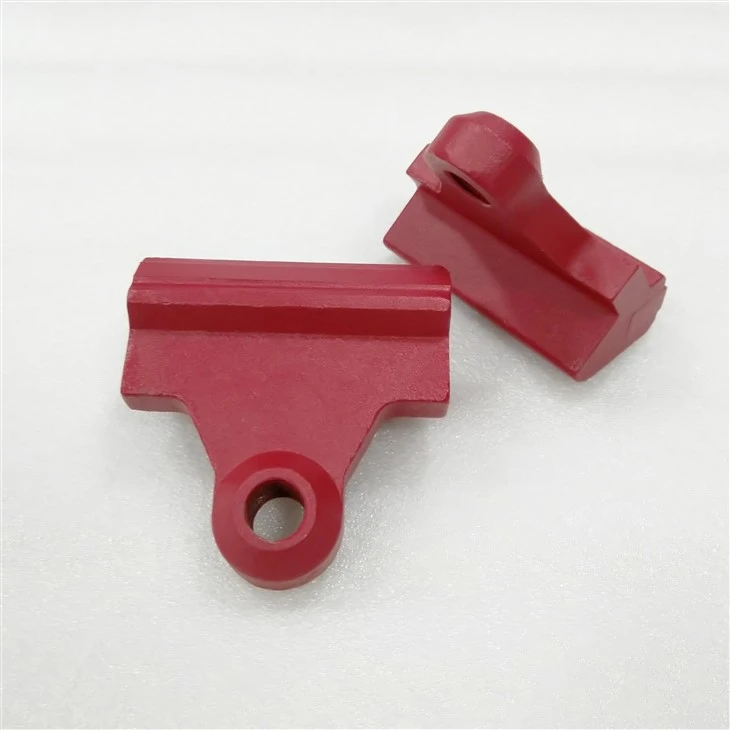

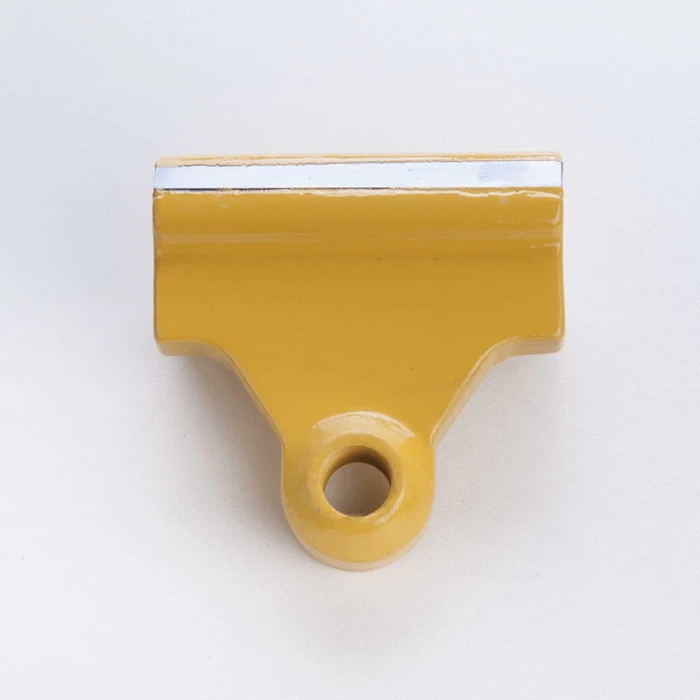

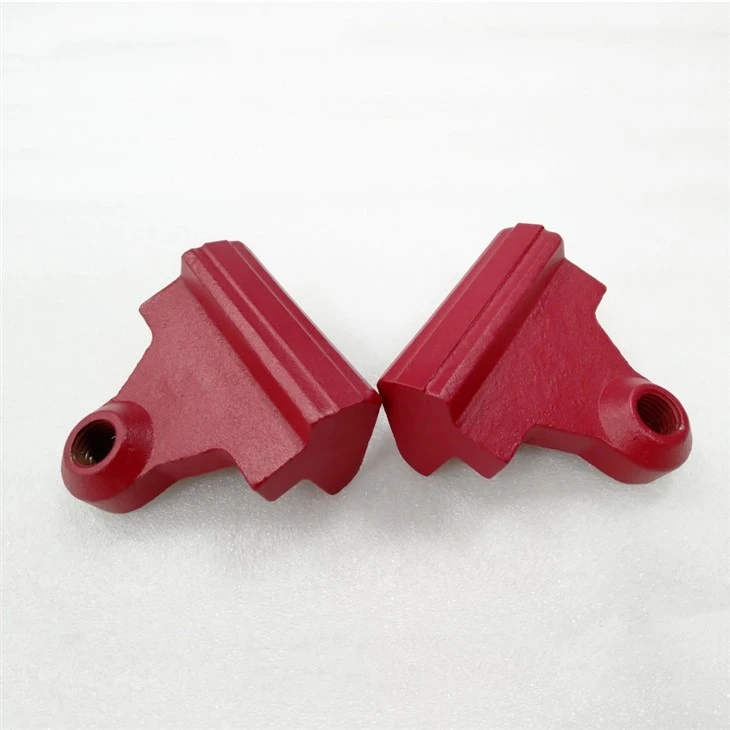

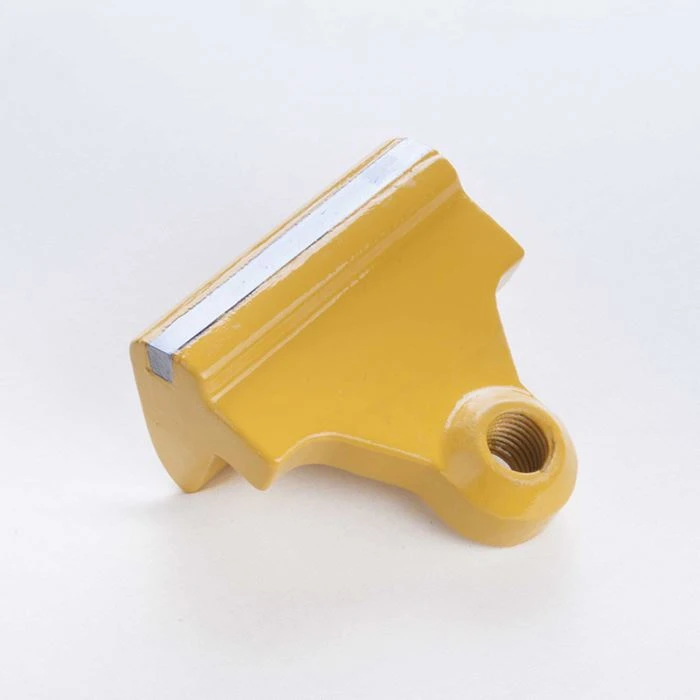

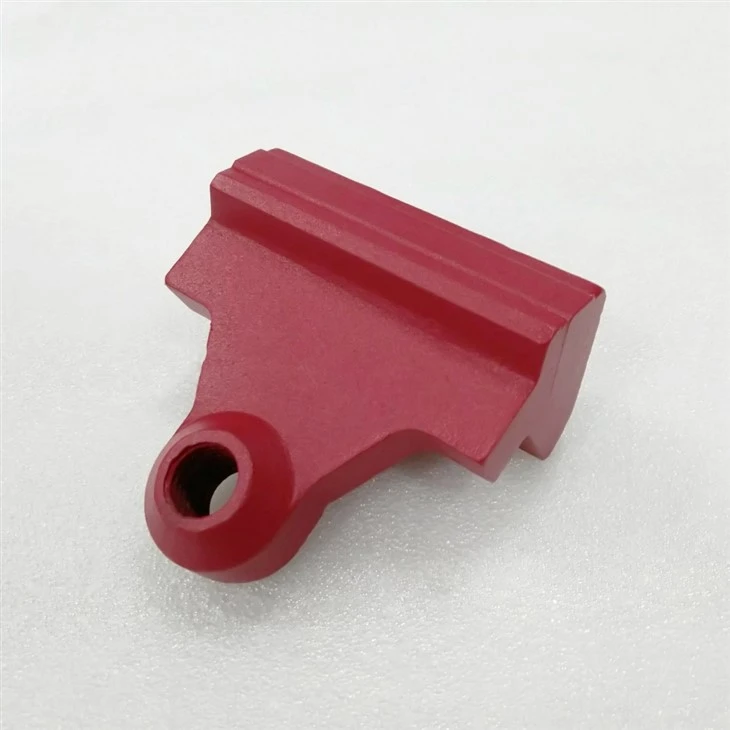

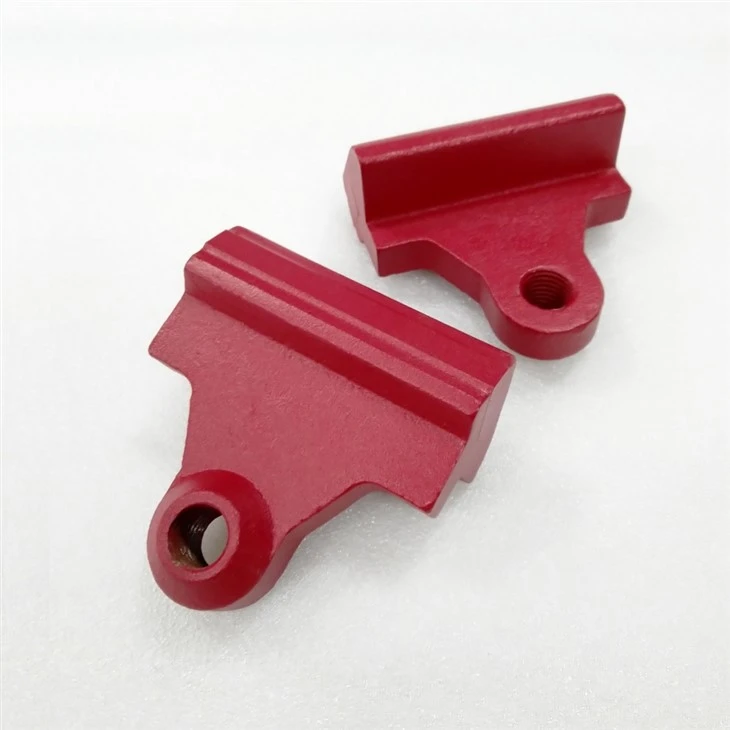

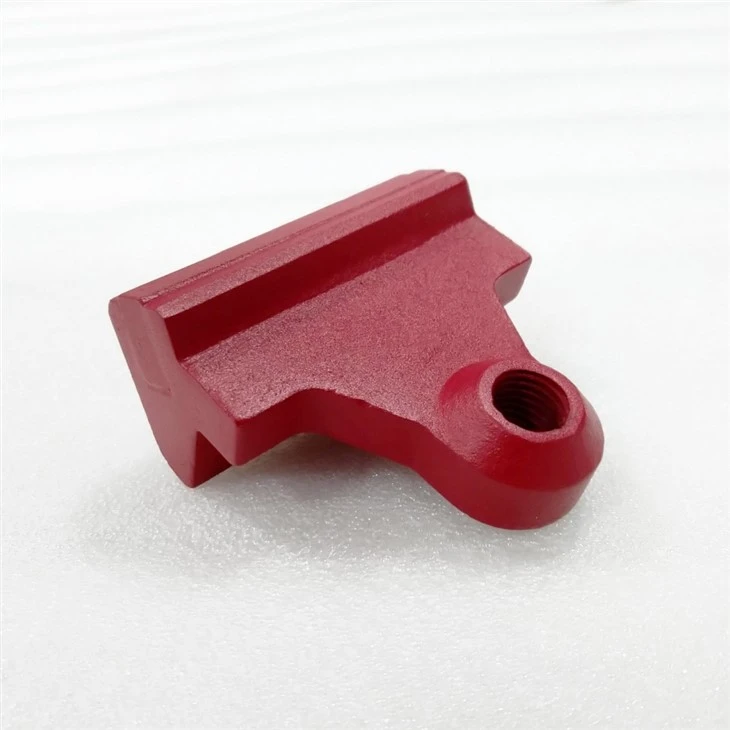

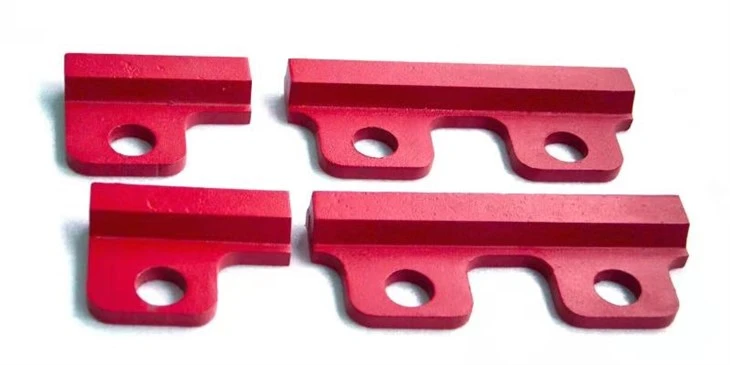

Carbide Throwing Head (Rotor Tip)
Widely used in mining, sand, cement, metallurgy, hydropower engineering and other industries, for these need to withstand high-speed impact, strong wear resistance of the industry, the use of ultra-wear-resistant carbide material is the most ideal choice, the material is cemented carbide
Compared with other materials, it has the advantages of good comprehensive performance, high reliability, strong wear resistance and low price
The thrower head is the core part of the vertical impact crusher (sand making machine)
SPEC
|
Material |
Tungsten carbide strip + steel |
|
Coating |
Apply paint on the surface |
|
Chemical Composition |
Co & WC + Steel Matrix |
|
Grain Size |
1.0~2.4 μm |
|
Hardness (HRA) |
85.6~92 |
|
Magnetic Force |
12~18 (KA/M) |
|
T.R.S |
2300~3000 (N/mm2) |
|
Magnetic Saturation |
8~10 (Ms) |
|
Purpose |
Mainly used for mining, sand |
|
Density |
13.8~15.2 (g/cm3) |
Tungsten Cemented Carbide Grade
Hot Products
Company Information
Kunshan Zhiyi Dingli Cemented Carbide Tool Co., Ltd. is a specialized manufacturer of carbide throwing heads (rotor tips) for VSI sand-making machines, crushers, and impact pulverizing equipment. Our throwing heads are precision-formed from high-cobalt, impact-resistant carbide grades that withstand extreme shock loads and abrasive wear, delivering significantly longer service life compared to conventional wear parts in mining, quarrying, sand production, and construction material processing operations worldwide.
Our factory produces carbide throwing heads in more than 200 standard profiles compatible with Metso, Sandvik, Barmac, Kemco, and all major Chinese VSI crusher brands. We operate advanced hot isostatic pressing (HIP) furnaces and precision grinding lines capable of producing 8,000+ throwing heads per month. Every head undergoes magnetic particle inspection and hardness verification before shipment to ensure zero defect rates.
Testing Machine
Production Flow Chart
Packing & Delivery
Packing
1>Put the goods encased with plastic bag or plastic case in wooden box/carton/iron box, etc.
2>Other packing will be accept according to your needs.
FAQ
Q1: Do your throwing heads fit all VSI crusher brands?
A1: We produce profiles for Metso (Barmac), Sandvik, Kemco, and all major Chinese crusher brands including Remco and OEM equivalents.
Q2: What is the typical service life?
A2: Service life varies by feed material hardness, typically 60–150 hours for limestone and 30–80 hours for granite.
Q3: Can you produce custom profiles?
A3: Yes, we can develop custom profiles from drawings or samples with 15–20 day tooling lead time.
